Product details

About this product

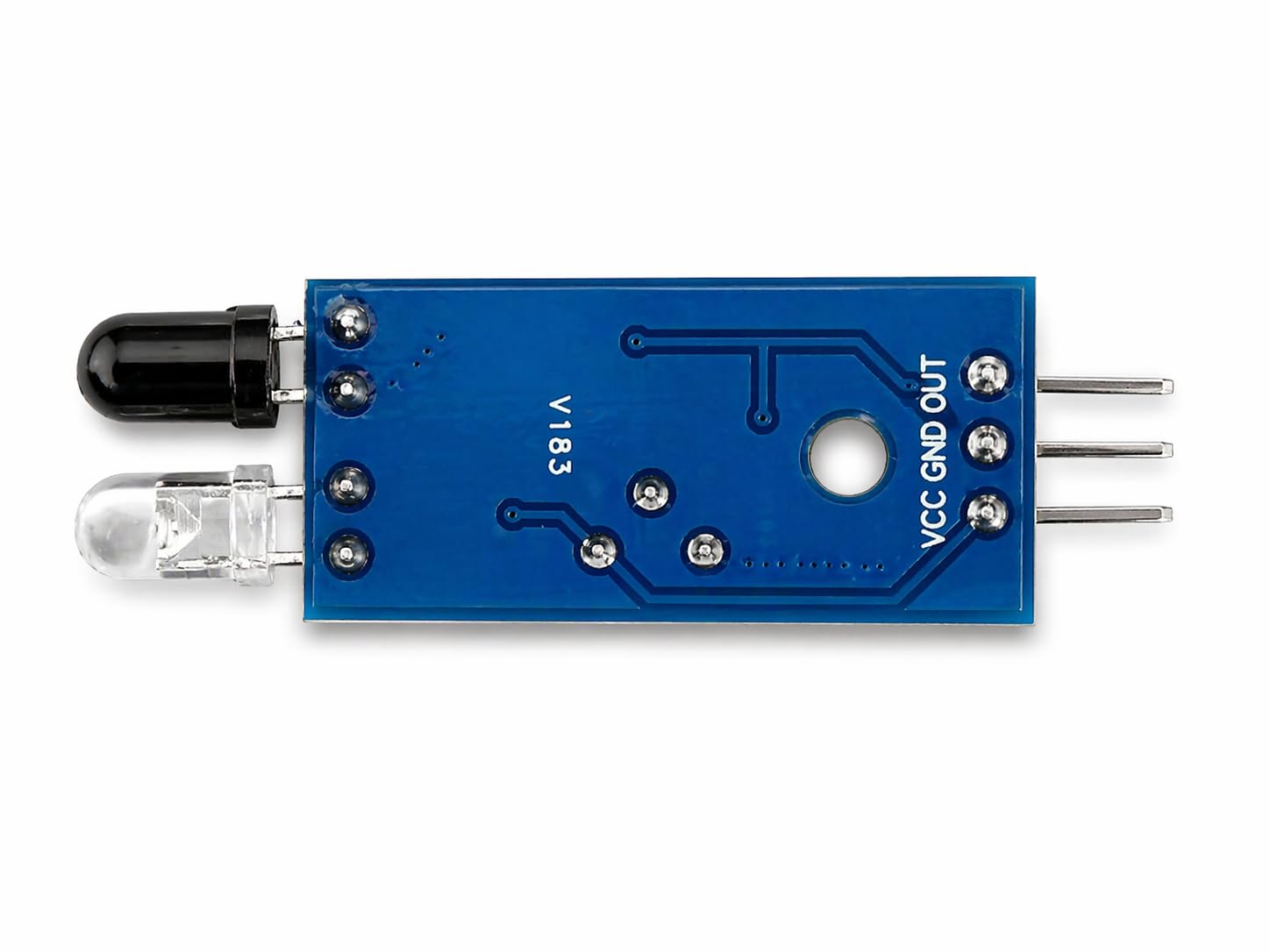

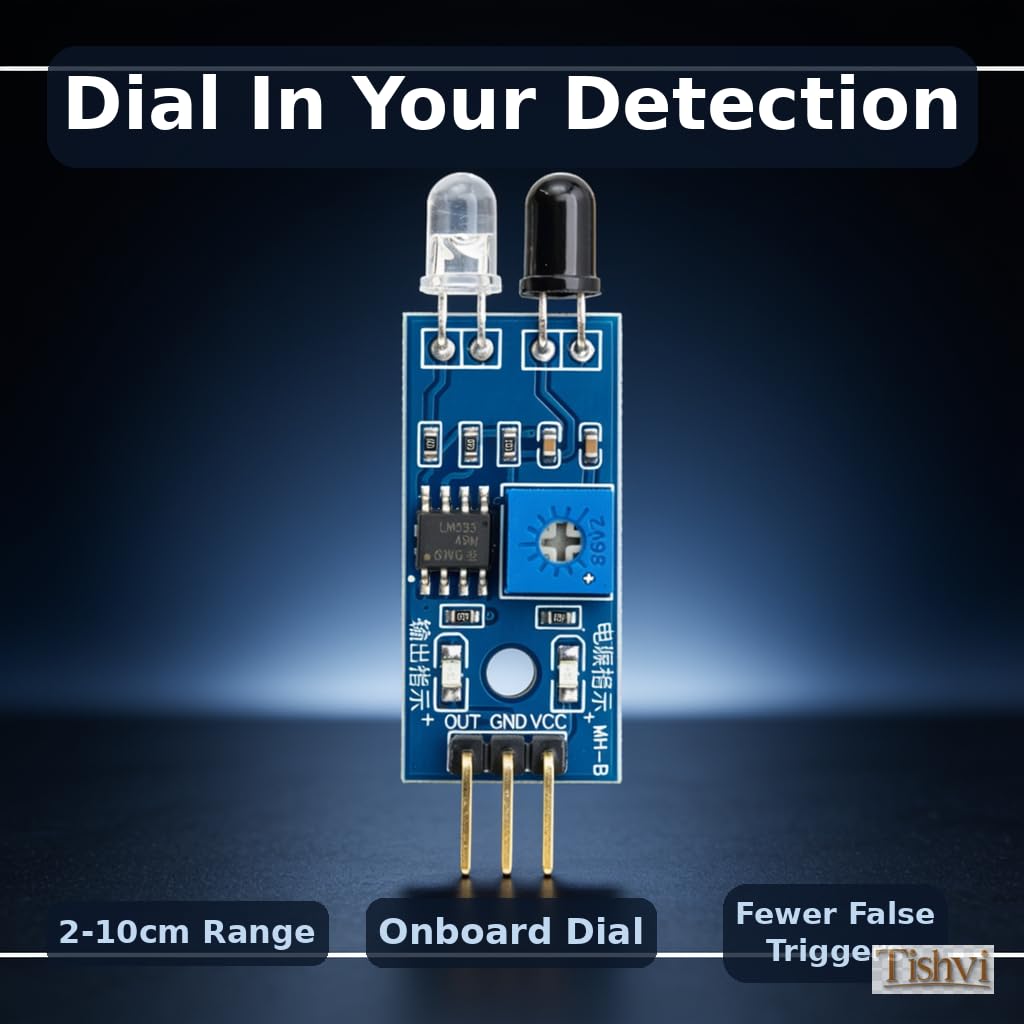

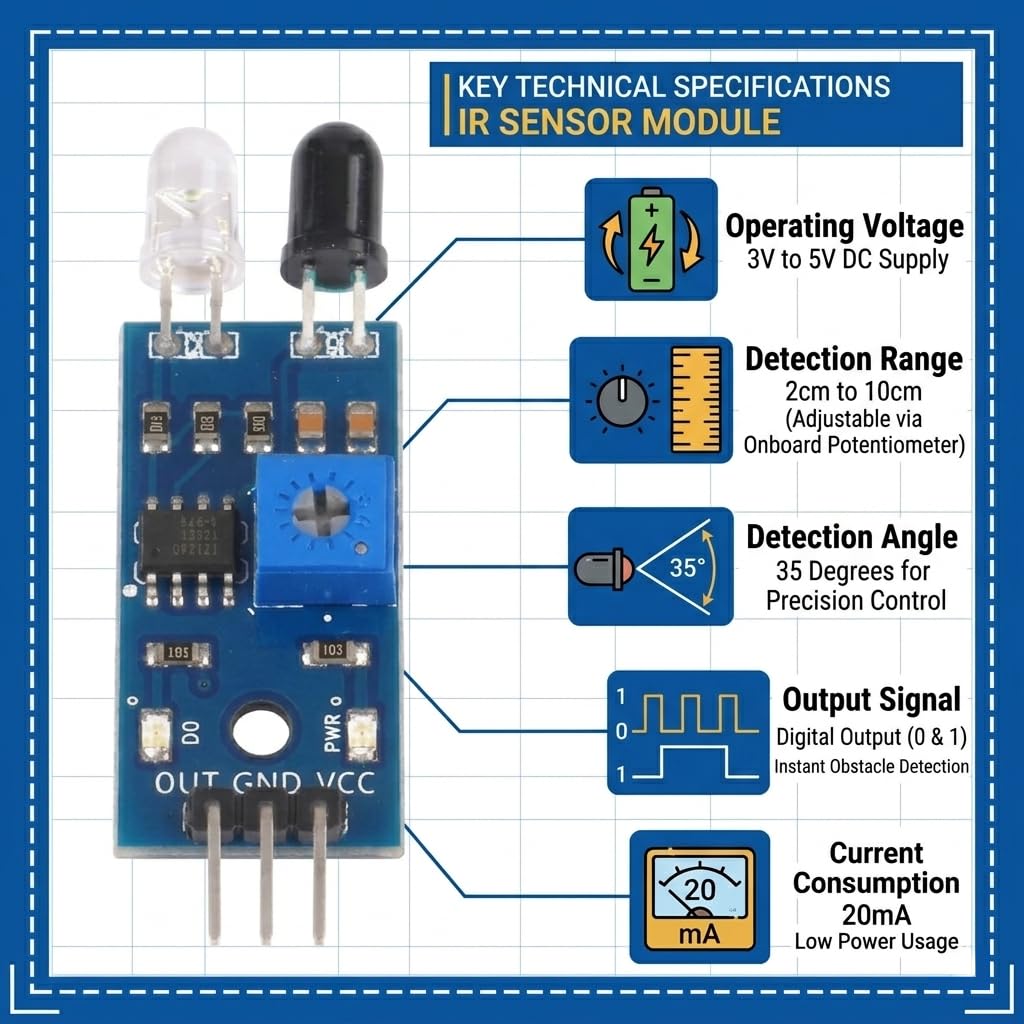

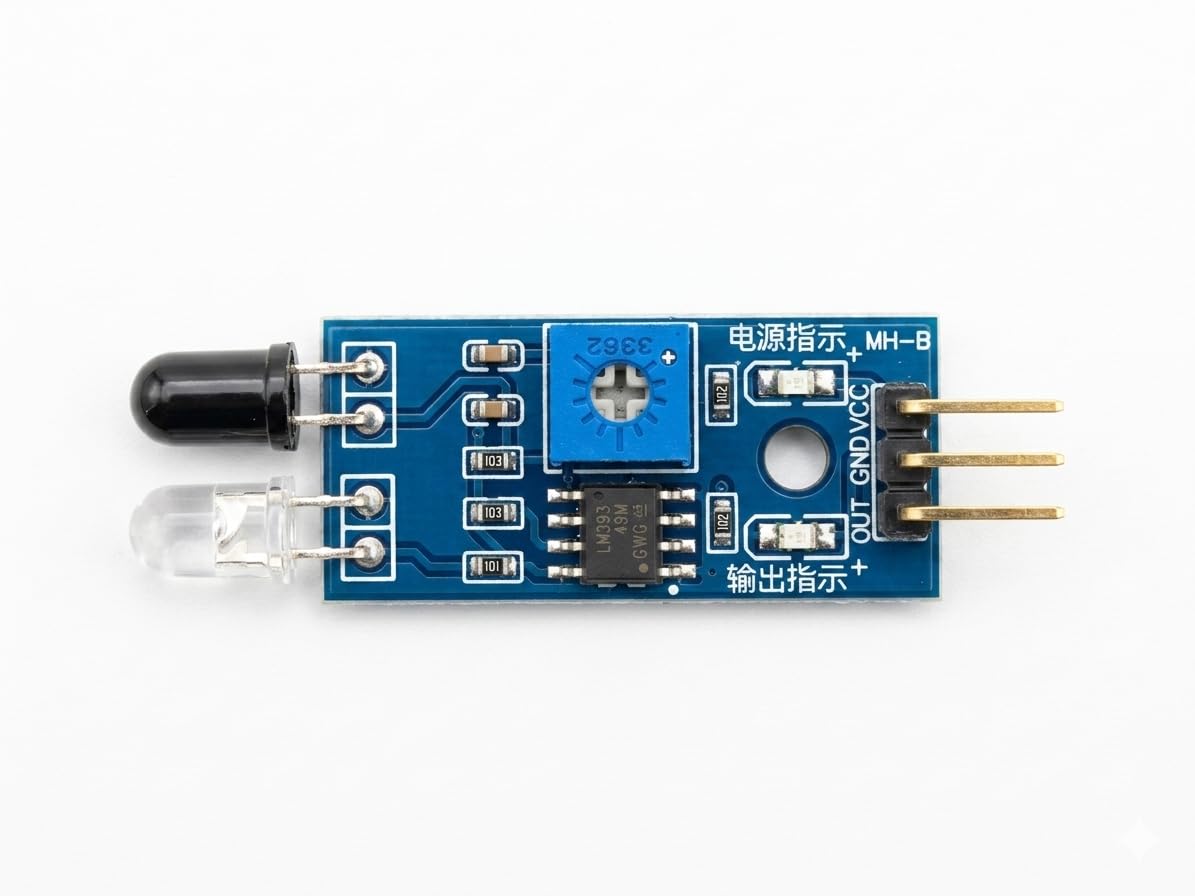

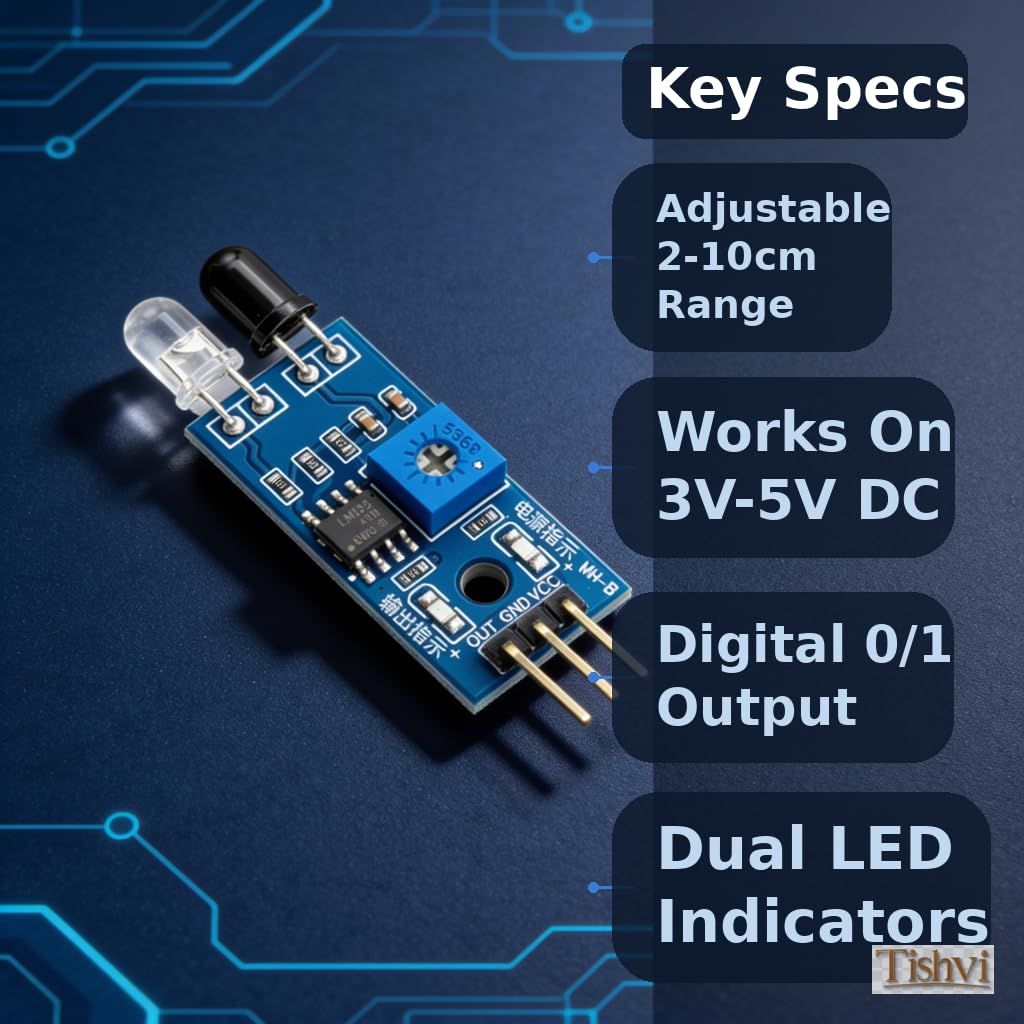

Enhance your DIY robotic projects with the Tishvi High-Precision IR Sensor Module. The Tishvi IR Sensor is a must-have component for makers, hobbyists, and engineering students. This module uses infrared light to sense nearby objects without physical contact, making it the perfect solution for obstacle avoidance, object counting, and proximity sensing. Key Features & Technical Specs: Operating Voltage: 3V to 5V DC Detection Range: 2cm to 10cm (Adjustable via Potentiometer) Detection Angle: 35 Degrees Output Signal: Digital Output (0 and 1) Onboard Controller: LM393 Voltage Comparator [cite: 1] Current Consumption: 20mA How It Works: The module consists of an IR LED (transmitter) and a photodiode (receiver). The transmitter continuously emits infrared light. When an object comes within the detection range, the light reflects back and is captured by the receiver. The onboard LM393 chip then processes this signal and triggers the digital output pin[cite: 3]. Why Choose Tishvi IR Sensors? Our modules are engineered for reliability and ease of use. Whether you are building an autonomous line-following robot or a touchless hand sanitizer dispenser, the Tishvi IR sensor provides stable, interference-resistant performance. The compact design allows it to be integrated into even the smallest enclosures. Simple Pin Configuration: VCC: Connect to 3V-5V external voltage GND: Connect to Ground OUT: Digital output interface (Digital Pin) Package Options: Also available in bulk packs of 2, 5, and 10 units for educational workshops and large-scale manufacturing needs.
