About this product

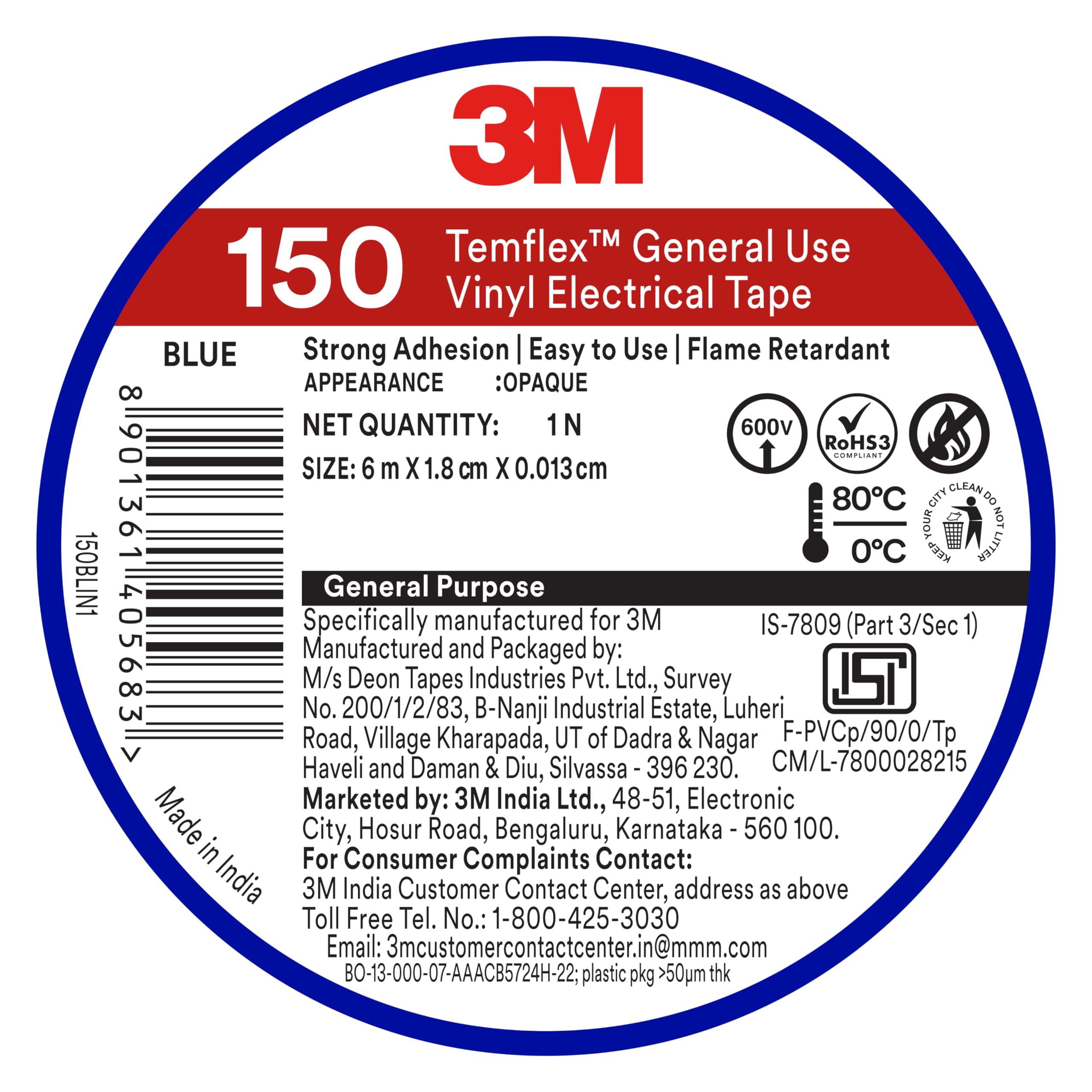

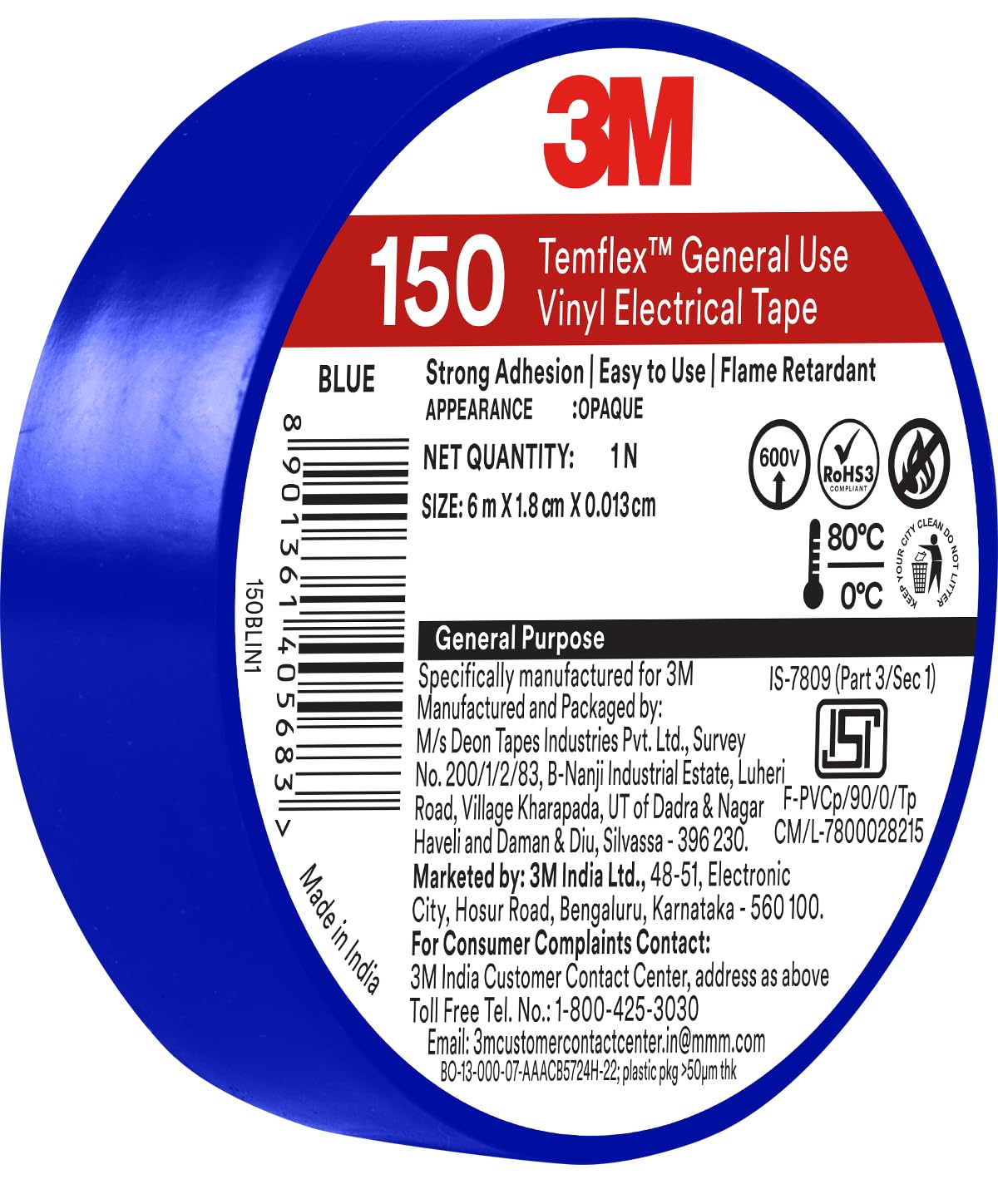

3M Temflex 150 Vinyl Electrical Tape is an economical general-purpose grade, nominal 0.13 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive. Commonly used in these types of Applications : -For residential, commercial, and manufacturing (OEM) environments. -Suitable for ambient indoor uses. -General wire harness taping, bundling wires, cables and wire pulling and fishing. -Basic electrical and hardware applications. Voltage rating: 600V -Temperature range rate 0°C-80°C (self-certified, based on the test method of standard CSA-C22.2 No.197). Installation Techniques : 3M Temflex 150 Vinyl Electrical Tape shall be applied in half-lapped layers with sufficient tension to produce a uniform wind. On pigtail splices, the tape shall be wrapped beyond the end of the wires and then folded back, leaving a protective cushion to resist cut-through. Wrap tape up-hill, taping from a smaller diameter surface to a larger diameter surface. Apply the tape with no tension on the last wrap to prevent flagging. Shelf Life & Storage : This product has a 2-year shelf life (from date of manufacture) when stored in humidity-controlled storage (10°C-27°C and <75% relative humidity).
