REES52 ESP32-CAM Camera WiFi + Bluetooth Module 4M PSRAM Dual-core 32-bit CPU Development Board with OV2640 2MP Camera Module + FT232RL FTDI USB to TTL Serial Converter + 40 pin Jumper Wire
13% OFF
All-Time Low

REES52 ESP32-CAM Camera WiFi + Bluetooth Module 4M PSRAM Dual-core 32-bit CPU Development Board with OV2640 2MP Camera Module + FT232RL FTDI USB to TTL Serial Converter + 40 pin Jumper Wire

3 customer ratings

₹1,299₹1,500
Save ₹201on MRP
Lowest price ever recorded
Price last updated 1 day ago
In Stock · Free Delivery
Buy on Amazon

Price from Amazon · verify before purchase · affiliate disclosure

Highlights

【ESP32-CAM】ESP-32CAM can be used in various IoT applications. It is suitable for smart home appliances, industrial wireless control, wireless surveillance, wireless QR identification, wireless location system signals, etc. It is an ideal solution for IoT applications.

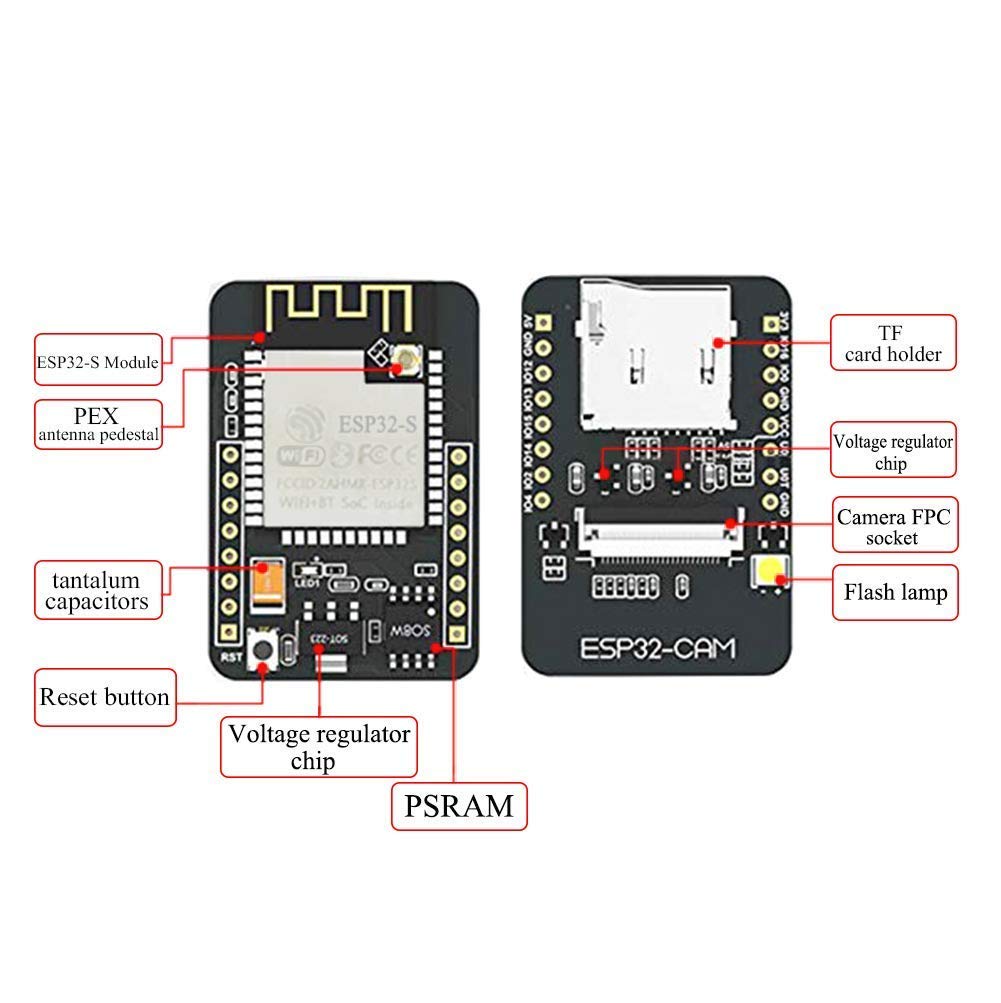

【High Performance】Extremely small 802.11b / g / n Wi-Fi + BT / BLE SoC module; Dual-core 5V low-power 32-bit CPU processor; Frequency up to 240 MHz, computing up to 600 DMIPS; Built-in 520 KB SRAM, external 4M PSRAM.

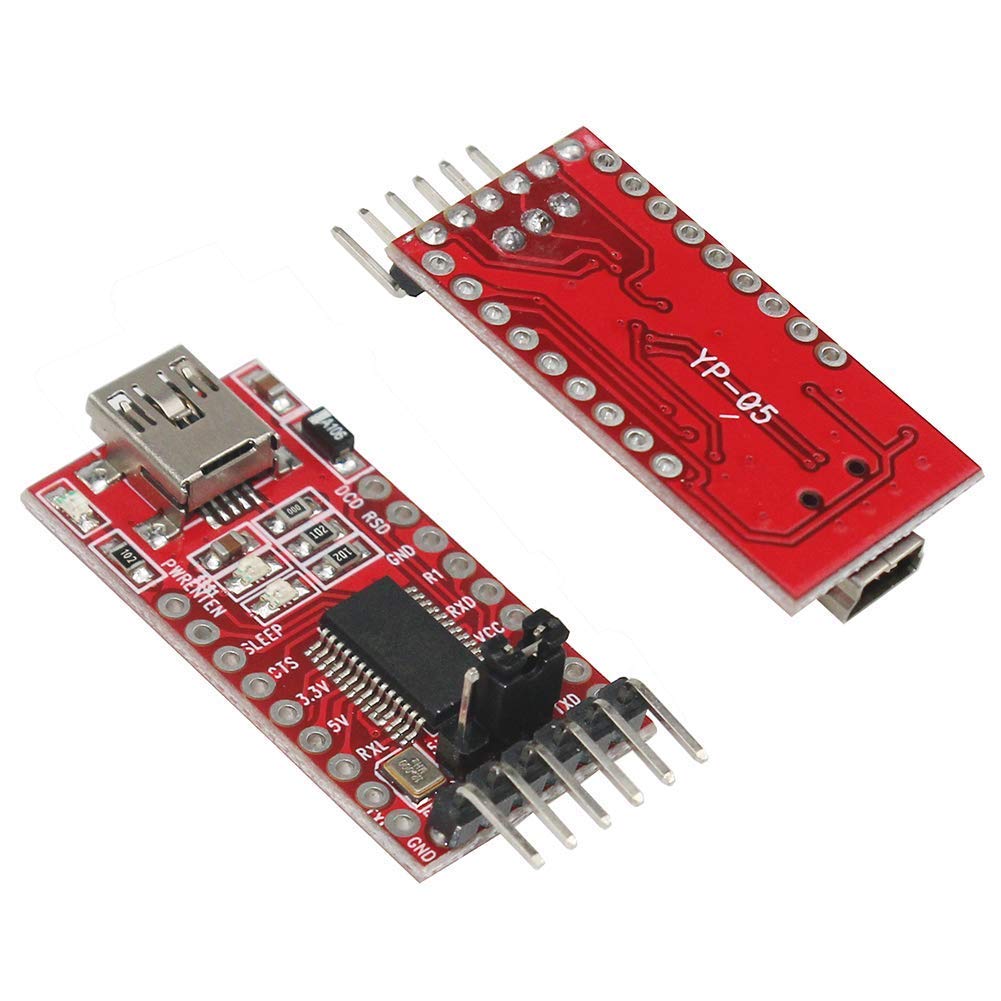

【FT232RL Module】The KeeYees FTDI USB Serial Adapter comes with the FT232RL chip and uses both 3.3V and 5V operating voltage. Adapter Logic-level can be set via jumpers on the board, which makes simple to connect to your controller. USB power has over current protection, using 500MA self-restore fuse. You can use the modules in this kit to burn the program directly without additional purchase.
【With Dupont Jumper Wires】 The Jumper wires are made of high-grade copper wire material for safe and durable to use. This set contains 20cm 40pin Female to Female Jumper Wires, with which you can easier to complete the project.

Price Drop Alert

Get notified when the price hits your target

Lowest Ever

₹1,189

Current Price

₹1,299

Highest Ever

₹1,299

Price over time

Product details

Brand
REES52
Manufacturer
REES52

About this product

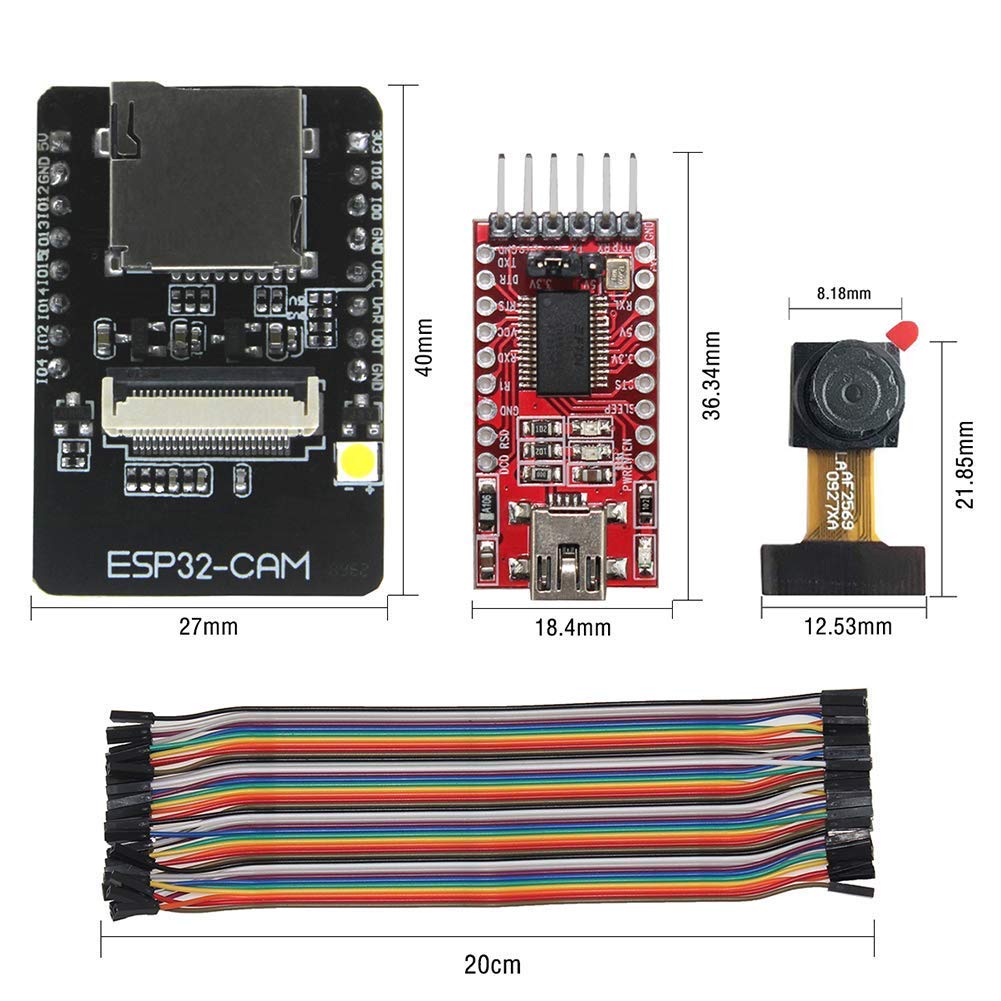

ESP32-CAM Specifications: - IO Port: 9 - SPI Flash: Default 32Mbit - RAM: Internal 520KB + External 4M PSRAM - Power Supply Range: 5V 2A - Bluetooth: Bluetooth 4.3 BR/EDR and BLE standard - WiFi: 820.11 b/g/n/e/i - Support Interface: UART/SPI/I2C/PWM - Support TF Card: Maximum 4G - Serial Port Rate: Default 115200 bps - Image Output Format: JPEG (Only OV2640 support), BMP, GRAYSCALE - Spectrum Range: 2412-2484MHZ - Antenna Form: Onboard PCB antenna, gain 2dBi - Transmit Power: 820.11b: 17±2dBm (@11Mbps); 820.11g: 14±2dBm (@54Mbps); 820.11n: 13±2dBm (@MCS7) - Safety: WPA/WPA2/WPA2-Enterprise/WPS FTDI USB To TTL Serial Converter: Chip: FT232RL, not genuine FTDI chip Pin definition: DTR, RXD, TX, VCC, CTS, GND Operating Voltage: 3.3V and 5V Pitch: 2.54mm Size: 40 x 18mm (L x W) Interface: Mini USB Support: Win95/98/98se/ME/2000/XP/win7 32bit 64bit /Vsita/, Do not Support Win8 XD / TXD transceiver communication indicator Jumper Wires: Pitch: 2.54mm Each cable length: 20CM Material: high-grade copper wire Type: Female-Female Package Included: - 1 x Mini ESP32 WiFi + Bluetooth Module - 1 x OV2640 camera - 1 x FTDI USB To TTL Serial Converter - 1 x 20cm 40pin Female-Female Jumper Wires
